Karbidschaftfräser

Custom 3.7mm 4 Flute Carbide Flat End Mill Specialized for Steel Machining TiCN AlTiN Coating Options Available

Alle Kategorien

Die Verarbeitung von Kohlenwasserstoffen

Schleifmaschinen für die Verarbeitung von Spinnfasern

Werkzeug zum Boren mit Kohlenstoff

Treten Sie mit uns in Verbindung

Ms. Niki

niki@carbide-drill.com

+86 17368153006

AMG-TOOLS

Kontakt jetzt

Custom 3.7mm 4 Flute Carbide Flat End Mill Specialized for Steel Machining TiCN AlTiN Coating Options Available

Markenbezeichnung:	AMG
MOQ:	3-10PCS
Verpackungsdetails:	Kunststoffrohr
Zahlungsbedingungen:	T/T/Kreditkarte

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

ISO9001

Name:

3.7mm 4 Flötenkarbid Flat End Mühle

Zoll oder Millimeter:

Alles kann angepasst werden.

Typ:

Quadratischer Schaftfräser

Durchmesser:

1 bis 20 mm

Gesamtlänge:

50-330mm

Für:

Stahl, rostfreier Stahl, Formen aus Stahl usw.

Versorgungsmaterial-Fähigkeit:

30000-100000 Stück pro Monat

Hervorheben:

3.7mm Carbide Flat End Mill

Steel Machining Carbide Flat Endmill

Produkt-Beschreibung

Custom 3.7mm 4 Flute Carbide Flat End Mill for Steel Machining

Attribute	Value
Name	Custom 3.7mm 4 Flute Carbide Flat End Mill
Inch Or Millimeter	All can be customized
Type	Square end mill
Diameter	1-20mm
Overall length	50-330mm
Suitable for	Steel, stainless steel, mold steel, etc

Precision Engineered for High-Performance Steel Machining

Our 3.7mm 4-flute carbide flat end mill is manufactured from ultra-fine grain tungsten carbide with optional TiCN or AlTiN coatings for exceptional durability in demanding CNC operations. The optimized 4-flute design balances material removal rate and surface finish quality, ideal for mold making, die manufacturing, and precision machining of steels up to HRC 55.

Key Features

Superior Tool Geometry: True 4-flute design with 30° helix angle, precision ground cutting edges (±0.005mm), and flat bottom design with <0.1mm corner radius
Advanced Material Technology: Sub-micron carbide substrate (0.5μm grain size) with TiCN or AlTiN coating options and polished flutes
Performance Advantages: 3-5× longer tool life vs HSS, 20% higher feed rates, superior surface finish (Ra 0.8μm), and reduced power consumption
Customization Options: Special diameters (3.5-4.0mm), various cutting lengths, multiple shank configurations, and special geometries

Applications

Mold & Die Industry: Precision cavities in P20, H13 mold steels, EDM electrode machining
Automotive Components: Transmission gear machining, engine block detailing
General Metalworking: Carbon steel fixture manufacturing, alloy steel prototype machining
Tool & Die Maintenance: Die repair and refurbishment, precision slot cutting

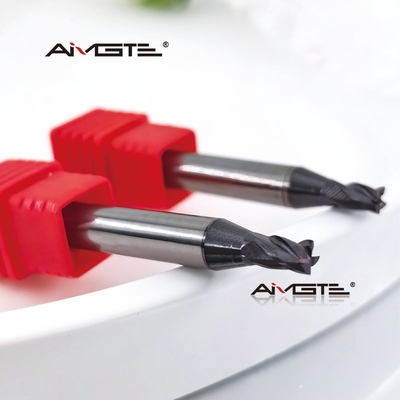

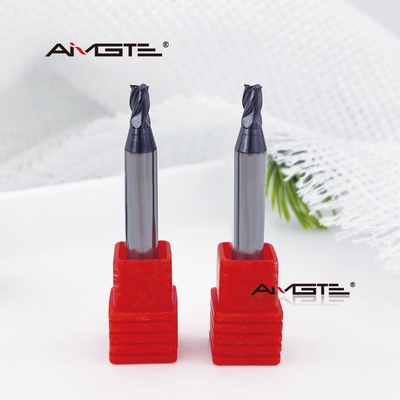

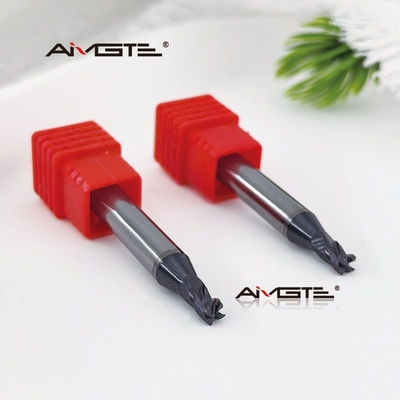

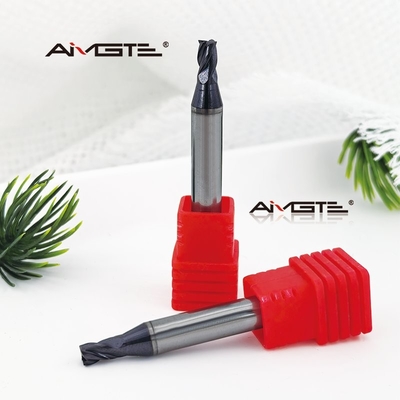

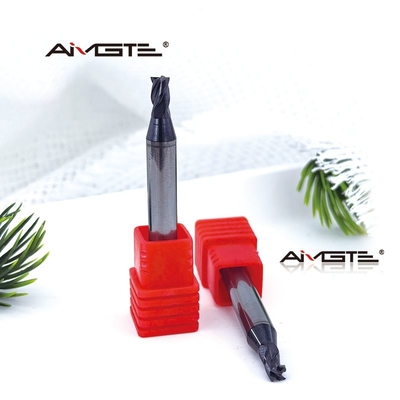

Product Images
